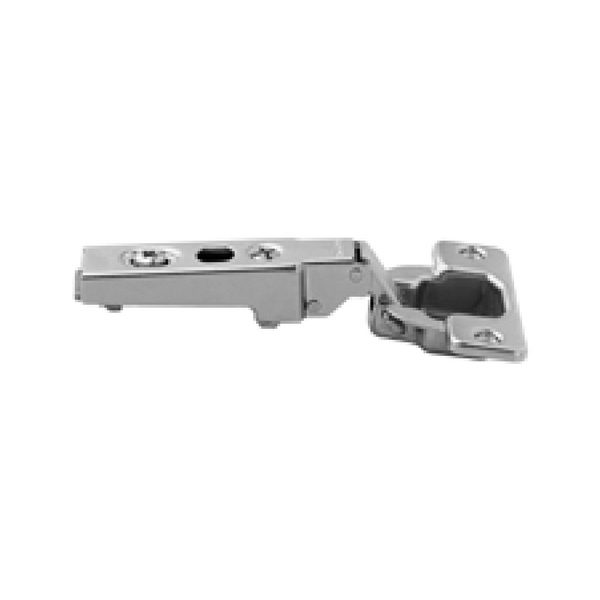

Blum 71M2550 CLIP Standard 100° Hinge
$1.44
CLIP 100 Degree Standard Hinge – Full Overlay/Self Closing
- Opening angle: 100°
- Cranking: corner merge application
- Closing mechanism: with spring
- Side adjustment: +/- 2 mm
- Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
- Use for doors between 16mm and 24mm thicknesses
Product Questions? Contact Support
Only 1 left in stock
Description
Manufacturer: Blum
Material: steel
Finish: nickel
Style: full overlay/self-close
Cup Assembly: screw-on
Type: European hinge
Cup Depth: 11mm
Bore Diameter: 35mm
Contents: 1 hinge
Mounting Hardware: sold separately
Warranty: Blum products are covered by a limited warranty. In the event the defective Blum hardware is obsolete or has been discontinued, Blum reserves the right to replace the defective hardware with a current offering. No guarantee of interchangeability is offered.
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 3 × 2 × 2 in |
