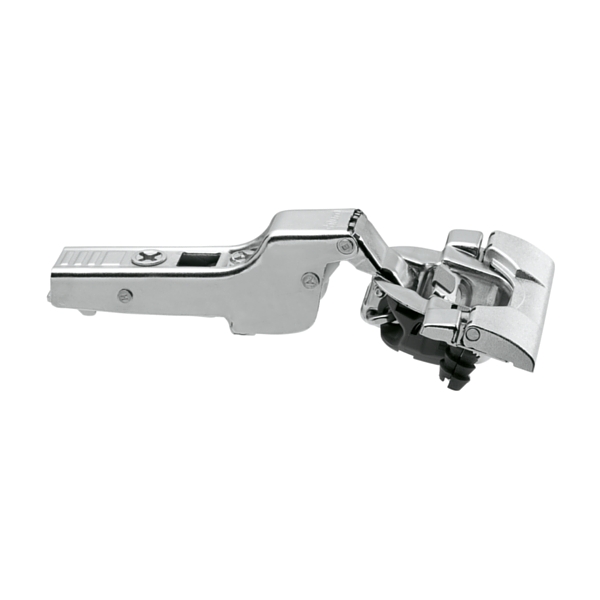

Blum 71B3690 CLIP top BLUMOTION 110° INSERTA Hinge
$5.13
CLIP top BLUMOTION 110 Degree INSERTA Hinge – Partial Overlay/Self Closing
- Opening angle: 110°
- Cranking: dual application BLUMOTION
- Closing mechanism: with spring
- Side adjustment: +/- 2 mm
- Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
- For door thicknesses up to 26mm (1″)
Product Questions? Contact Support
In stock
Description
Manufacturer: Blum
Material: steel
Finish: nickel
Style: partial overlay/self-closing
Cup Assembly: INSERTA
Type: European hinge
Cup Depth: 13mm
Bore Diameter: 35mm
Contents: 1 hinge
Mounting Hardware: sold separately
Warranty: Blum products are covered by a limited warranty. In the event the defective Blum hardware is obsolete or has been discontinued, Blum reserves the right to replace the defective hardware with a current offering. No guarantee of interchangeability is offered.
Additional information
| Weight | 0.19 lbs |
|---|---|
| Dimensions | 4 × 2 × 2 in |
