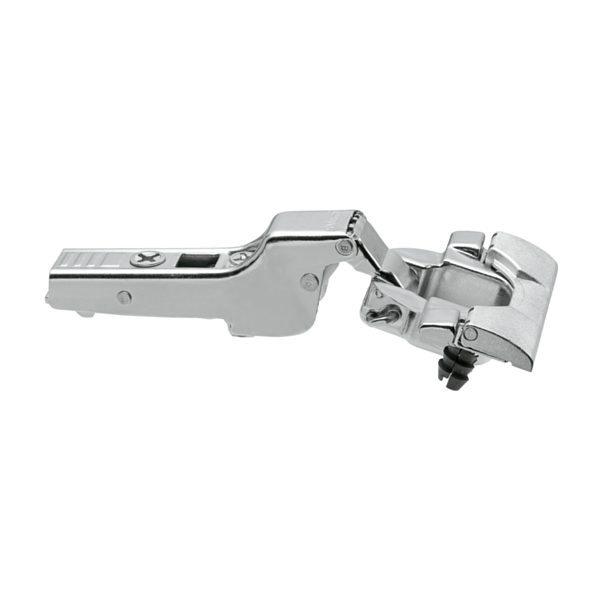

Blum 71T3690 CLIP top Standard 110° INSERTA Hinge

$3.05

CLIP top Standard 110 Degree INSERTA Hinge – Partial Overlay/Self Closing

Opening angle: 110°
Cranking: dual application
Closing mechanism: with spring
Side adjustment: +/- 2 mm
Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
For door thicknesses up to 26mm (1″)

Product Questions? Contact Support

In stock

SKU: BL 71T3690 Category: European Hinges Tags: Blum, Blum Hinges

Description

Manufacturer: Blum

Material: steel

Finish: nickel

Style: partial overlay/self-closing

Cup Assembly: INSERTA

Type: European hinge

Cup Depth: 13mm

Bore Diameter: 35mm

Contents: 1 hinge

Mounting Hardware: sold separately

Warranty: Blum products are covered by a limited warranty. In the event the defective Blum hardware is obsolete or has been discontinued, Blum reserves the right to replace the defective hardware with a current offering. No guarantee of interchangeability is offered.
