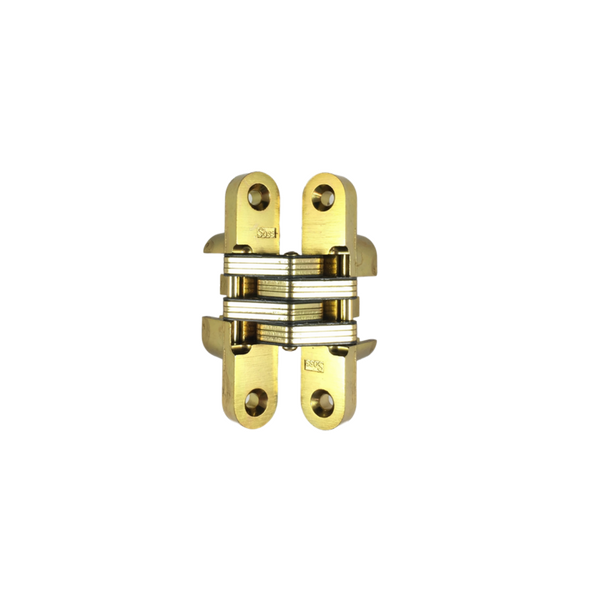

SOSS 212US4 Model 212 Invisible Hinge – Satin Brass

Soss 212 Medium Duty Concealed Hinges

When closed, the Soss 212 series invisible hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable. The moving pivot point remains inside the hinge during travel until fully opened, eliminating an external pinch point on the back side of the door. The installed hinge is anchored in a deep, full mortise, which assists the screws in supporting the door, assuring a stronger, more rigid installation. *Image shown is of un-plated.

• For 1-1/8″ minimum door thickness
• Opens 180°
• Hinge is completely concealed when door is closed
• Made from high strength plated steel
