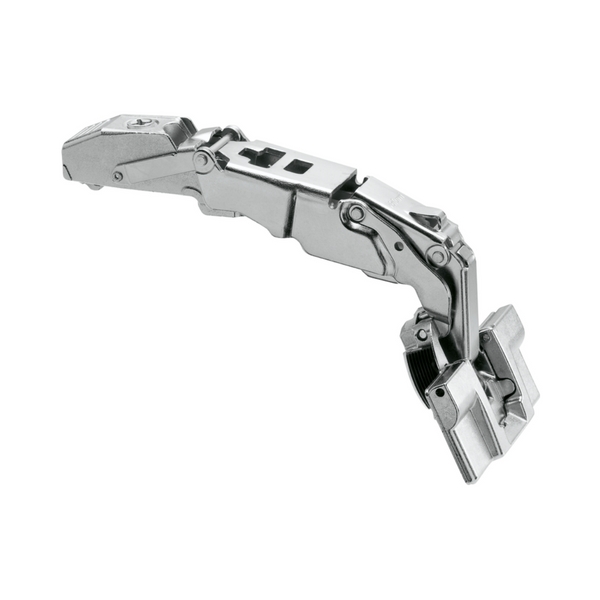

Blum 71T7590 CLIP top Wide Angle 155° Zero Protrusion Inserta Hinge
$6.93
Clip Top Wide Angle 155 Degree INSERTA Hinge – Zero Protrusion
- For use in cabinets with interior roll-outs
- Opening angle: 155°
- Closing mechanism: with spring
- Side adjustment: +/- 2 mm
- Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
- For door thicknesses up to 24mm (15/16″)
- Can be used with 92° Angle Restriction Clip
Product Questions? Contact Support
In stock
Description
Manufacturer: Blum
Material: steel
Finish: nickel
Style: full overlay/self-closing
Cup Assembly: INSERTA
Type: European hinge
Cup Depth: 11.7mm
Bore Diameter: 35mm
Contents: 1 hinge
Mounting Hardware: sold separately
Warranty: Blum products are covered by a limited warranty. In the event the defective Blum hardware is obsolete or has been discontinued, Blum reserves the right to replace the defective hardware with a current offering. No guarantee of interchangeability is offered.
Additional information
| Weight | 0.50 lbs |
|---|---|
| Dimensions | 4 × 2 × 2 in |
