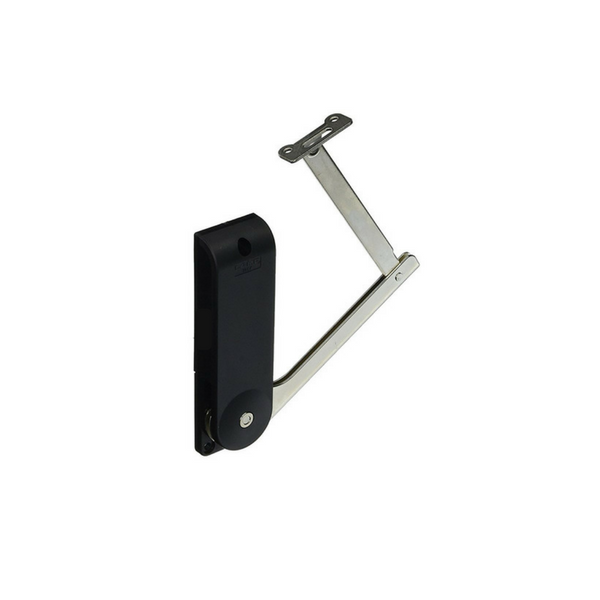

Sugatsune HDS-20 Medium Duty Black Soft-Down Stay – Right
$27.07
The Sugatsune HDS-20MR (right) is designed to hold the door in a fully opened position. For use with a top opening flap door with piano, butt or concealed hinges. *HDS-20ML (left) required.
Product Questions? Contact Support
Only 2 left in stock
Description
Manufacturer: Sugatsune/Lamp
Part Number: HDS-20MR
Type: medium duty soft-down stay
Material: plastic/steel
Color: black
Contents: 1ea. right
Warranty: limited lifetime warranty
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 6 × 3 × 3 in |
Installation & Overview Guides
Torque Calculation: Torque = Door Height × 1/2 × Door Weight
K-Type (Light Duty): 140-200 kg·cm (121-173 lbs·inch)/pair
M-Type (Medium Duty): 200-250 kg·cm (173-216 lbs·inch)/pair
H-Type (Heavy Duty): 250-300 kg·cm (216-260 lbs·inch)/pair
K-Type (Light Duty): 140-200 kg·cm (121-173 lbs·inch)/pair
M-Type (Medium Duty): 200-250 kg·cm (173-216 lbs·inch)/pair
H-Type (Heavy Duty): 250-300 kg·cm (216-260 lbs·inch)/pair
